Vertical Woltman Helix Water Meter

Bulk water meter with dry dial

Request a Quote

Stepping away from the conventional, our Woltman helix water meter with vertical installation brings a fresh perspective to large-diameter pipeline metering. This meter is known for its dynamic flow handling and minimal pressure impact. When water courses through this meter, it drives the uniquely shaped helical impeller in an axial flow, converting the water's velocity into a quantifiable volume displayed on the meter.

Applications

From the kitchen to the bathroom, Woltman helix water meters are ideal for metering household water usage.
Tracks water flow in commercial establishments and light industrial facilities.
These water meters are a reliable choice for water measurement in schools, hospitals, and other public institutions.

Specifications

Nominal diameter	Overload flowrate Q4	Permanent flowrate Q3	Q3/Q1	Q2/Q1	Transitional flowrate Q2		Minimal flowrate Q1	Maximum reading	Resolution of reading
									P type	M type
mm					m³/h			m³
40 50 65	50	40	160	1.6	0.4	0.25		999,999	0.0005	0.0002
				6.3	1.6
			200	1.6	0.32	0.2
				6.3	1.26
80	78.8	63	160	1.6	0.64	0.4
				6.3	2.5
			200	1.6	0.5	0.32
				6.3	2
100 125	125	100	160	1.6	1	0.63
				6.3	3.97
			200	1.6	0.8	0.5
				6.3	3.2
150	313	250	160	1.6	2.56	1.6
				6.3	10
			200	1.6	2	1.25
				6.3	7.9
200	500	400	160	1.6	4	2.5
				6.3	16
			200	1.6	3.2	2
				6.3	12.6

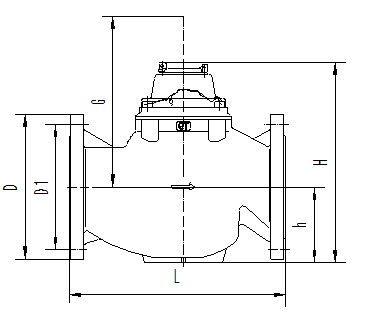

Dimensions

Model	Length	Height			Connecting flange GB/T17241.6-1998
	L	H	h	G	External diameter of flange D	Bolt circle diameter D1	Connection bolt n-M
	mm
40	280	228	85	268	150	110	4-M16
	245	218	75	260	Threaded connection G2B
50	280	228	85	268	165	125	4-M16
65	200	235	85	280	185	145	4-M16
80S	225	282	103	344	200	160	8-M16
80	370
100S	250	303	116	350	220	180	8-M16
100	370
125	250	302	118	365	250	210	8-M16
150	500	430	155	565	285	240	8-M20
200	500	505	190	384	340	295	8-M20
							12-M20 (MAP16)

Working Conditions

Suitable for cold water ≤50℃
Water pressure ≤1MPa, 1.6MPa
Upstream & downstream flow field sensitivity class: UO DO.

Features

Vertical Woltman helix water meter reduces friction and enhances lifespan.
A stainless steel strainer is built into the meter, saving the cost and hassle of external filters.
Capable of handling a variety of flow rates, making it versatile for multiple applications.
Equipped to adapt to modern metering needs with options for remote data transmission.
