Mini Single-Jet Water Meter

Mechanical water meter with compact design
Mini Single-Jet Water Meter
Mini Single-Jet Water Meter Mini Single-Jet Water Meter Mini Single-Jet Water Meter Mini Single-Jet Water Meter
Request a Quote

Our mini single-jet water meters are designed with a focus on compactness, light weight, and cost-effectiveness. They feature a magnetic drive for smooth operation, and their counting components can rotate 360° for flexibility. The 8-digit register ensures clear and rapid readings, with an alternative 5-digit water meter model available according to different requirements.

Working Conditions
  • Temperature class:
    cold water meter: T30;
    hot water meter: T30/T90
  • Pressure class: MAP10
  • Pressure loss class: Δp63
  • Upstream flow field sensitivity class: U10
  • Downstream flow field sensitivity class: D5
Specifications
Nominal diameter Approval ratio R Overload flowrate Q4 Permanent flowrate Q3 Transitional flowrate Q2 Minimal flowrate Q1 Resolution of reading Maximum reading
mm Q3/Q1 m³/h m³
15 80 3.1 2.5 0.050 0.031 0.00005 99,999
20 80 5 4 0.080 0.050 0.00005 99,999

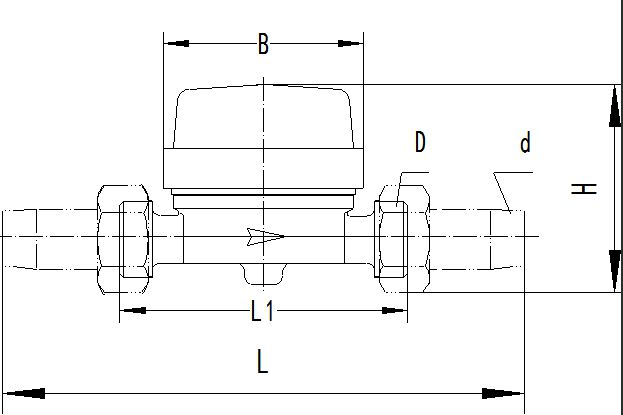

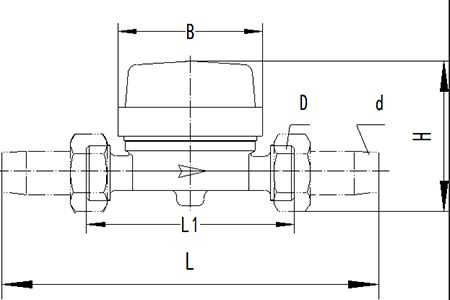

Dimensions
Dimensions
Nominal diameter Length L1 Length L Width B Height H Threaded connection
mm D d
15 110 203 68 72 G¾B R1/2
20 130 233 68 74 G1B R3/4
Applications

These water meters are perfect for basic water flow measurement and metering across a range of environments. Key applications include residential water metering, commercial and small industrial water usage tracking, and monitoring water consumption in public facilities and institutions.

Offering simplicity and reliability, our mini single-jet water meters provide a practical solution for essential water metering needs in diverse contexts.
